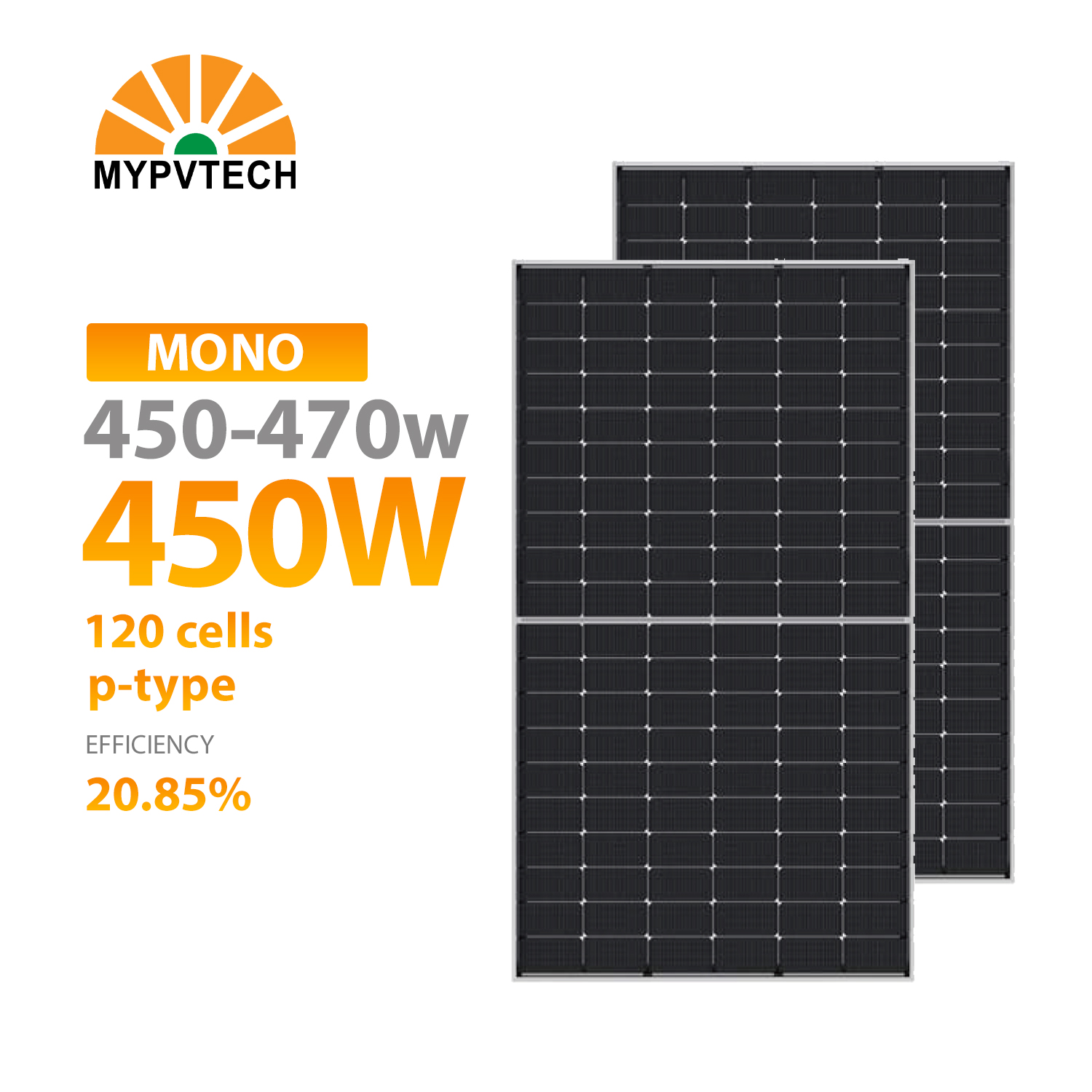

System owners and operations providers face a common headache. A single module fails from storm damage or microcracking. You contact the manufacturer for a replacement, only to find they discontinued that specific model years ago. Sometimes, the manufacturer no longer exists. Solar technology evolves rapidly. Newer modules are significantly larger and produce much more power. Forcing a mismatched unit into your current array creates immediate physical mounting hazards. Aesthetic issues degrade roof appeal. Electrical bottlenecks can cripple your entire system output. We need a structured approach to solve this. Evaluating physical and electrical compatibility is mandatory. Proper integration ensures a replacement solar panel does not compromise structural integrity. It protects visual appeal and maintains the energy yield of your existing array.
Thickness is the most critical physical dimension: Mismatched frame thicknesses (e.g., 35mm vs. 40mm) compromise mid-clamps, risking panel slippage and voiding wind/snow load warranties.
Electrical matching supersedes physical matching: Even if a panel fits perfectly, differing voltage (Vmp) or current (Imp) profiles can drag down the performance of an entire string unless microinverters or optimizers are used.
Creative placement mitigates dimension differences: Moving the replacement panel to the end of a row or a separate rail segment solves most length and width mismatch issues.
Aesthetics matter for residential arrays: Matching frame color, backsheet color, and cell type (mono vs. poly) prevents a patchwork appearance on the roof.
Supplier vetting is crucial: Finding an exact or near-exact match requires a replacement solar panel supplier with access to legacy inventory or specialized form factors.
Solar manufacturing moves incredibly fast. The industry constantly pushes for higher efficiency and lower production costs. Ten years ago, standard residential modules produced around 250 watts. They utilized 60 standard-sized cells. Today, standard units routinely exceed 400 watts. This massive power increase requires larger silicon wafers. The industry shifted from M2 wafers to M6, M10, and G12 formats. Larger wafers dictate larger physical footprints.
The manufacturing lifecycle of a specific solar module rarely exceeds two or three years. Once a production line upgrades to a new wafer size, legacy sizes become obsolete immediately. Primary supply chains clear out old inventory quickly to make room for high-demand modern units. Finding an exact physical and electrical match after five years borders on impossible. Warehouses do not hold onto low-wattage modules because the storage costs outweigh the hardware value. You are left searching secondary markets or specialized maintenance suppliers.
Ignoring dimension differences carries heavy consequences on the roof. You cannot simply force a larger frame into a tight array grid. Uneven wind loading occurs when one unit sits higher than the rest. This creates a dangerous sail effect. Wind catches the exposed edge during storms. It places immense mechanical stress on the racking system and the roof attachments.
Water pooling presents another severe risk. Rainwater dams against protruding frames. This constant moisture degrades frame seals over time, leading to water ingress and ground faults. Aesthetically, mismatched arrays look terrible on residential roofs. Mechanical stress plagues the mounting rails when you force incompatible frames together. Rails twist under uneven tension. Standard clamps fail to hold the units securely. A loose module will eventually slide down the roof plane, tearing wiring and potentially causing property damage or injury.
Replacing a single defective unit makes environmental sense. It minimizes carbon emissions compared to a full system renovation. You avoid discarding perfectly functional legacy equipment prematurely. However, it requires precise technical execution. You must weigh the effort of a single swap against upgrading an entire string.
Sometimes, sourcing a rare legacy module requires extensive shipping logistics. Freight costs for a single module often exceed the cost of the hardware itself. This negates some environmental benefits. Upgrading a string provides a unified look and modern performance. Yet, a targeted single replacement remains the most resource-efficient choice. It simply demands careful planning to execute safely. You save the customer money on hardware, but you must account for the increased labor time required to integrate a mismatched unit properly.
You must measure your existing units accurately. Do not rely solely on old paperwork. Climb up and measure the frame length, width, and thickness in millimeters. Racking mechanics rely on precise replacement solar panel dimensions. Length and width mismatches affect rail spacing directly. They disrupt row alignment across the roof plane. If a new unit is significantly wider, it will push adjacent units off their designated rail mounting zones.
Frame thickness represents the most critical physical metric. Standard mid-clamps secure two adjacent modules simultaneously. They require both frames to share the exact same height. You cannot secure a 35mm frame and a 40mm frame with a standard mid-clamp. The clamp will only grip the thicker frame. The thinner unit remains loose. It will eventually slip down the roof. This structural failure voids racking warranties immediately.
Common Legacy vs. Modern Panel Dimensions | ||||
Era/Type | Typical Wattage | Average Length (mm) | Average Width (mm) | Frame Thickness (mm) |
|---|---|---|---|---|
Legacy 60-Cell (Pre-2016) | 250W - 280W | 1640 - 1650 | 990 - 992 | 40 - 45 |
Transitional 60-Cell (2016-2019) | 300W - 330W | 1650 - 1680 | 992 - 1002 | 35 - 40 |
Modern 108-Cell Half-Cut (Post-2020) | 390W - 415W | 1722 - 1754 | 1134 - 1140 | 30 - 35 |
Visual impact matters heavily for residential properties. Mixing panel designs degrades curb appeal. You must pay attention to frame colors. Older systems often feature silver aluminum frames with white backsheets. Modern systems almost exclusively use anodized black frames with black backsheets. Placing a silver frame in a sea of black stands out drastically.
Cell appearance also varies widely. Older polycrystalline cells exhibit a distinct blue, speckled hue. Modern monocrystalline cells look solid black. Matching these visual elements prevents a patchwork appearance. It maintains the architectural integrity of the home. If you cannot find an exact visual match, try to place the replacement unit in a less visible location on the roof.
Electrical matching dictates system performance. In traditional string inverter setups, modules connect in a series circuit. You must match the Current at Maximum Power (Imp). You must also match the Voltage at Maximum Power (Vmp). A mismatched unit acts as a severe bottleneck. If you introduce a module with a lower current rating, it drags the entire string down. The string output drops to match the lowest performing module. The inverter's Maximum Power Point Tracking (MPPT) algorithm will struggle to find an optimal operating voltage, leading to erratic production.
Module-Level Power Electronics (MLPE) change this dynamic. Microinverters and DC optimizers isolate each module independently. They make electrical mismatches far less detrimental. A lower-output unit will only affect its own production. The rest of the string operates at full capacity. However, physical dimension issues remain identical regardless of inverter technology. You still need proper solar panel compatibility for existing systems to ensure structural safety.
Hybrid and off-grid systems introduce battery constraints. You must respect charge controller limits. Introducing a significantly higher-wattage unit might exceed maximum input voltage thresholds. It can overwhelm the current limits of your existing charge controller. Always verify the maximum input specifications of your off-grid equipment before connecting a modern, high-output module.
Technical workarounds exist for thickness mismatches. You can utilize specialized transition mid-clamps. These clamps feature uneven steps designed specifically for mismatched frames. They grip a 35mm frame on one side and a 40mm frame on the other securely. Alternatively, you can use adjustable end-clamps.
Never attempt DIY shimming. Do not stuff washers, rubber pads, or scrap aluminum under a standard clamp to make it fit. This practice voids all racking warranties. It compromises safety ratings and guarantees eventual mechanical failure during high winds. Always use engineered hardware rated for the specific rail system on your roof. Ensure you torque all clamps to the manufacturer's exact specifications, typically around 14 Nm for standard aluminum mid-clamps.
Strategic placement solves most dimension headaches. Moving the replacement unit to the end of a rail isolates the dimension mismatch completely. It allows you to use standard end-clamps on the new unit. It prevents the disruption of the primary array grid. The new unit hangs slightly past the others, but it does not force adjacent units out of alignment.
Follow this process for strategic relocation:
Identify a functional legacy module at the end of an accessible row.
Power down the system and disconnect the string wiring safely.
Remove the functional legacy module from the end position.
Install the functional legacy module into the empty spot left by the broken unit.
Secure the legacy module using the existing standard mid-clamps.
Mount the new, mismatched replacement module at the end position.
Secure the new module using adjustable end-clamps.
Verify rail cantilever limits are not exceeded by the new module's dimensions.
Sometimes space remains strictly constrained. Tight roof planes offer no room for expansion. In these scenarios, you need a compact replacement solar panel. These specialized units maintain smaller physical footprints.
You face trade-offs here. Compact units often feature lower overall wattage. However, they fit the existing physical footprint perfectly. This avoids costly mounting hardware upgrades. It prevents the need to extend rails or re-engineer the roof layout. Assess whether the slight drop in wattage is worth the massive savings in installation labor. In most residential scenarios, saving hours of racking modifications justifies a minor drop in peak string output.
You must compile a technical brief before shopping. Do not just ask for a "300-watt panel." You need a precise custom solar panel specification. Locate your original module datasheet. Extract the exact frame dimensions down to the millimeter. Note the cell type, whether monocrystalline or polycrystalline. Document the frame and backsheet colors. Record the electrical characteristics, specifically Imp and Vmp.
Define acceptable tolerances for your supplier. You might accept a +/- 5mm variance on length and width. However, you must demand an exact match on frame thickness unless you plan to buy transition clamps. Clear tolerances prevent suppliers from shipping useless equipment. It streamlines the sourcing process and ensures you only review viable options.
Selecting the right vendor makes all the difference. Avoid bulk new-build distributors. They rarely stock legacy sizes. You need a specialized replacement solar panel supplier. Look for vendors who offer dedicated technical consultation. They should understand string voltage matching.
Seek out suppliers who hold legacy stock specifically for maintenance purposes. Vendors specializing in Operations and Maintenance (O&M) understand these challenges. They stock replacement photovoltaic modules that standard distributors ignore. Verify their warranty policies on older stock before purchasing. Ask about their shipping methods, as single modules require heavy-duty pallet packaging to survive freight transport without glass breakage.
Introducing a module with a larger surface area alters system physics. It changes the wind uplift calculations of your existing racking system. It also alters snow load dynamics. A larger surface catches more wind. It holds more snow weight. You must verify that the existing rails can support this new load.
Check the rail overhang limits. A longer module might extend too far past the last mounting rail. This causes the frame to flex under heavy snow. Excessive flexing causes microcracks in the silicon cells. It eventually shatters the tempered glass. Always consult the racking manufacturer's engineering guidelines regarding maximum overhang distances. If the new module exceeds the cantilever limit, you must install an additional rail segment.
System degradation plays a hidden role in performance. Your existing array has weathered the elements for years. A new unit will not have the same 10+ years of degradation. It will naturally want to produce more power. In a string inverter system, the older modules will still throttle this new unit down. You will not see the full rated power of the new module.
Use this maintenance event wisely. Audit the health of your inverter while the crew is on site. If your central inverter is nearing the end of its lifespan, evaluate the situation. Central inverters typically last 10 to 15 years. If yours is over 10 years old, calculate the return on investment of a concurrent upgrade. Swapping a failing inverter while replacing a broken module saves an extra truck roll. It modernizes your system and resets your warranty clock.
Finding an exact physical match for an older solar module remains difficult. Dimension mismatches are entirely manageable with the right approach. You need the right mounting adjustments. You must respect aesthetic considerations. You absolutely must verify electrical matching. With careful planning, your system will return to full operational capacity without compromising safety.
Follow a strict decision hierarchy. First, match the frame thickness exactly, or commit to buying specialized transition clamps. Second, match the electrical profiles closely if you operate a string inverter. Third, manage any length or width differences through strategic placement at the end of a rail.
Take these immediate next steps to resolve your system outage:
Climb up safely and measure your existing module dimensions in millimeters.
Locate your original installation paperwork to find the exact Imp and Vmp ratings.
Check your inverter type to determine if you have a string system or microinverters.
Draft a technical specification sheet with acceptable size tolerances.
Contact a specialized O&M supplier with your exact requirements.
A: Yes, you can mix sizes physically by adjusting placement and using specialized clamps. However, electrical compatibility dictates system performance. You must ensure the new unit matches the voltage and current profile of the existing string to avoid power bottlenecks.
A: Standard mid-clamps will fail to secure the thinner unit. The thinner module will slip, voiding warranties and creating safety hazards. You must use specialized transition mid-clamps designed for uneven frames, or move the thicker unit to an end position using standard end-clamps.
A: Follow four core steps. First, match the frame thickness exactly. Second, match the Current (Imp) and Voltage (Vmp) ratings. Third, verify your racking can handle any length or width differences. Finally, match the frame color and cell type for aesthetic consistency.
A: It is not strictly necessary unless the inverter is actively failing. However, an operational audit is highly recommended for systems over 10 years old. Upgrading an aging inverter during a panel replacement saves labor costs and modernizes your system.
A: It can, if not verified. In off-grid or hybrid systems, you must verify that the new unit's voltage and current do not exceed the charge controller's maximum input limits. Exceeding these limits can permanently damage your power electronics.
A: Point your search toward specialized O&M suppliers, solar liquidators, and secondary solar markets. Standard bulk distributors rarely carry legacy sizes. Always emphasize the need for warranty verification when buying older or refurbished stock.
A: It depends on the installation execution. It will void the warranty if it exceeds the rail span, overhang limits, or wind load ratings specified by the racking manufacturer. Always verify engineering limits before mounting a significantly larger unit on existing rails.
